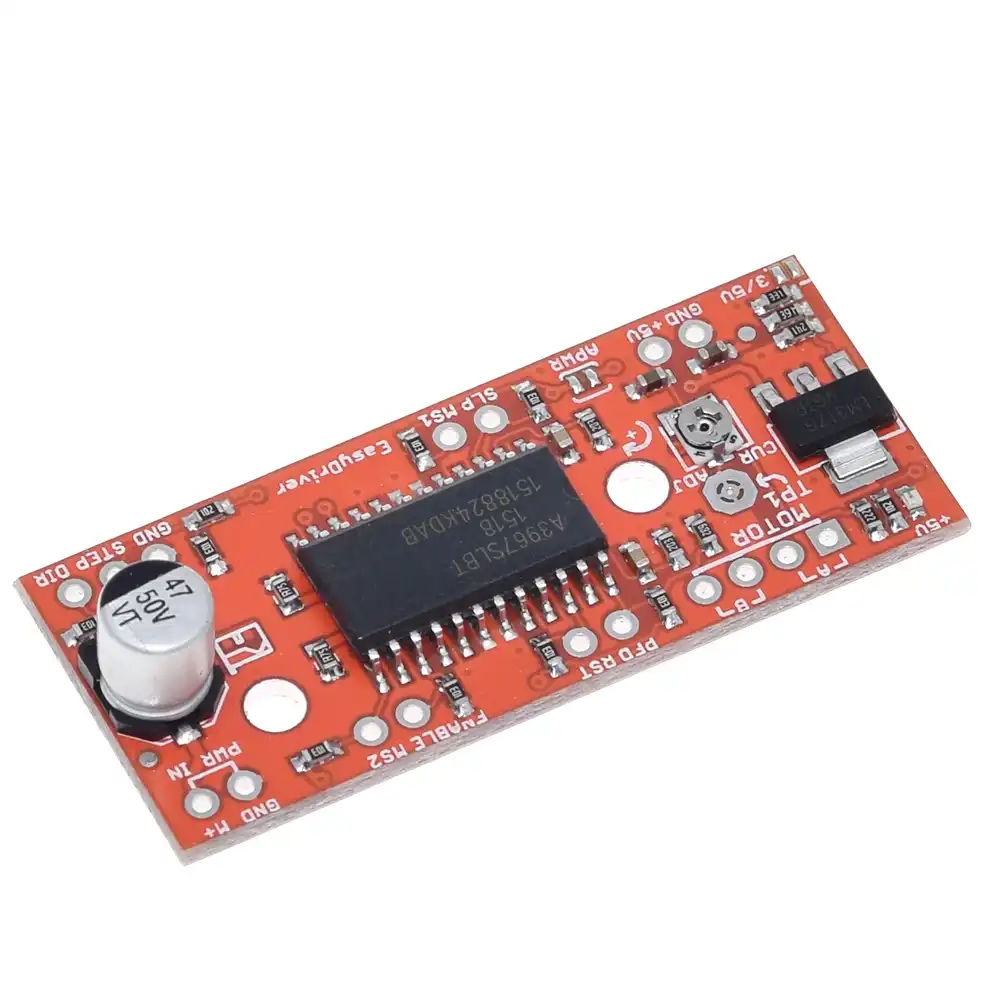

EasyDriver Stepper Motor Driver V4.4 Single Axis RAMPS Arduino Pi

EasyDriver Stepper Motor Driver V4.4 Single Axis RAMPS Arduino Pi: Business, Industry & Science. EasyDriver Stepper Motor Driver V4.4 Single Axis RAMPS Arduino Pi: Business, Industry & Science. Logic Voltage: 3.3 - 5VDrive Voltage: 6 - 30VCharacteristics: Adjustable current controlOver temperature thermal shut downStep and Direction controlFull, Half, 1/4 and 1/8 StepDrive Current: 2A (150 – 750mA per phase) 。 Chipset: A3967 。 Mounting holes: M3 24mmPin pitch: 2.54Soldering Points: Input/Output 。 Operating Temperature: -40°C to 85°C (unconfirmed)Number of Pieces: 1Included Items: 1 18pin 2.54 Header 。 This module is ideally suited to motor control to your project. This is the EasyDriver module allows you to build in stepper controlled motors to your projects, controlling the speed and direction with steps and direction. This can be used with a wide range of microcontrollers including Arduino and Raspberry Pi.The driver requires a pulse and a direction, which are supplied through the breakout board. These inputs are then used by the driver to control the current through the loops of the motors. Each pulse is used to turn the motor shaft by a fraction of a rotation. Typically 200 pulses will drive the shaft one whole circle – termed full step mode. This means that every pulse turns the shaft 1.8 degrees. Changing the rate of pulses affects the smoothness of the rotation. The higher the rate is, the smoother the rotation. A greater number of steps allows for finer accuracy of rotation, however it comes at a cost to torque, the force of rotation.Please do not hesitate to contact us if you require further information regarding the module's operation. 。 。 。
